Tiny:bit robot RGB searching light


1-1.The position of the LED lights in the robot car

1-2.Learn about the principle of LED

Programming method:

Mode 1 online programming: First, we need to connect the micro:bit to the computer by USB cable. The computer will pop up a USB flash drive and click on the URL in the USB flash drive: http://microbit.org/ to enter the programming interface. Add the Yahboom package: https://github.com/lzty634158/Tiny-bit to program.

Mode 2 offline programming: We need to open the offline programming software. After the installation is complete, enter the programming interface, click【New Project】, add Yahboom package: https://github.com/lzty634158/Tiny-bit, you can program.

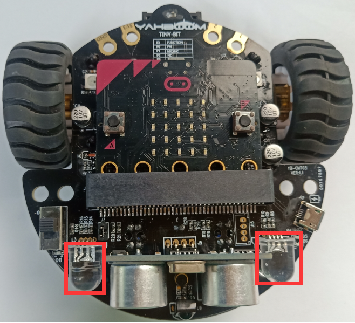

In the picture shown below, the two lights with the red wire frame are the RGB Searching lights on the Tiny-bit.


Principle:  LED light (red, green, blue) are packaged in the LED module. We can mix different colors(256*256*256) by controlling the brightness of the three LEDs.

2.Learning goal

2-1.Learn how to use RGB Searching lights graphically program building blocks

2-2.In this lesson, we will learn to light up  red RGB Searching lights on the Tiny-bit robot.

3.Search for block

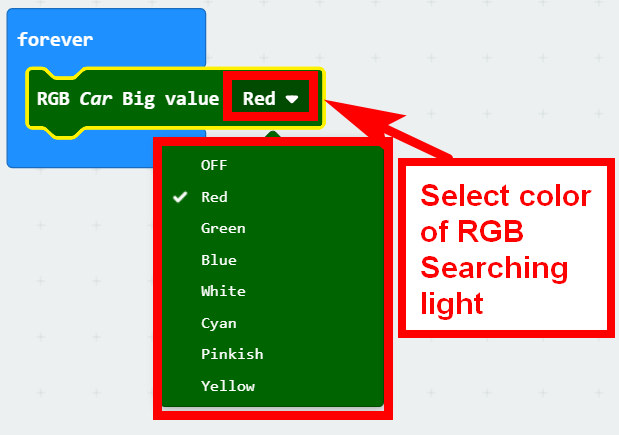

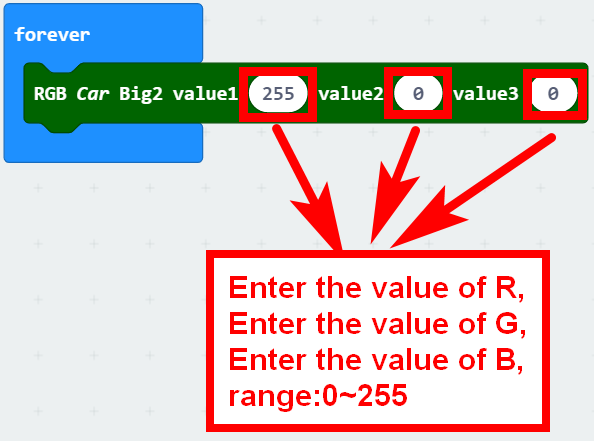

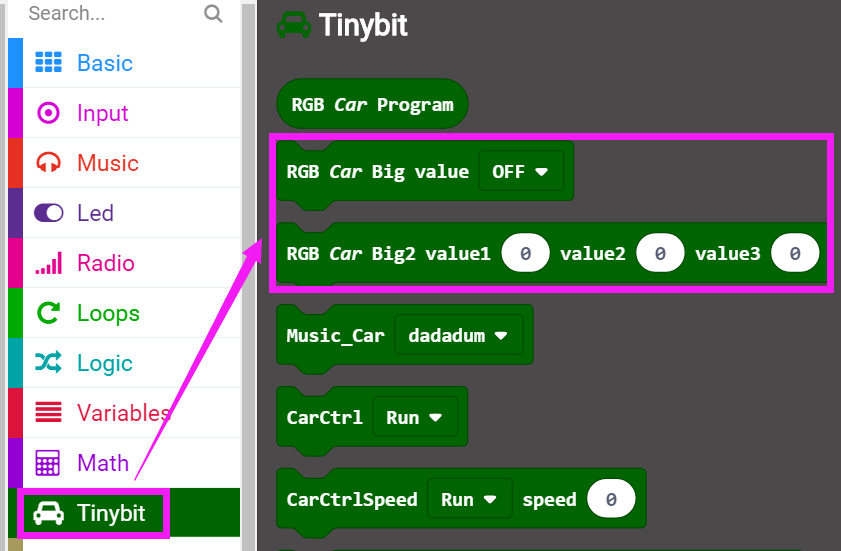

The following is the location of the building blocks required for this programming.


4.Combine block

The summary program is shown below:

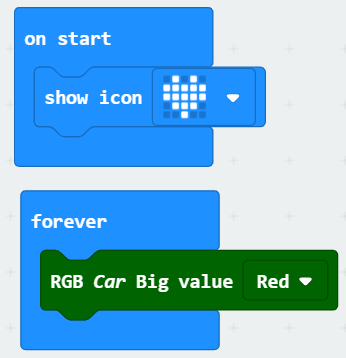

Method 1:

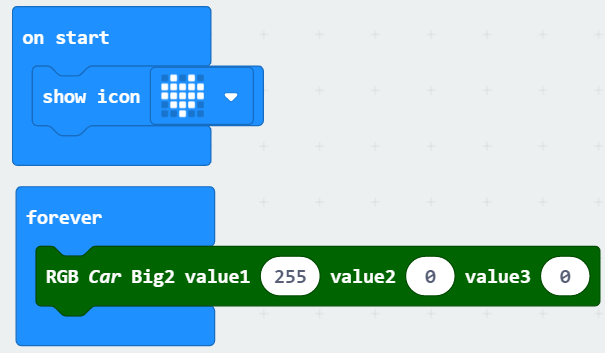

Method 2:


5.Experimental phenomena

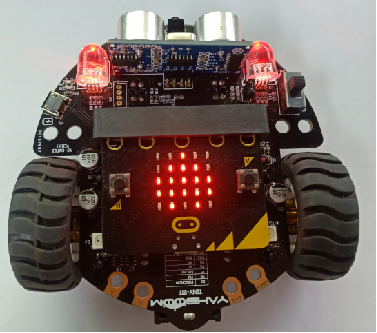

After the program is downloaded, we can see that micro:bit board will display a heart pattern on the dot matrix. Two RGB Searching lights will be lit red, as shown below.


The code of the experiment: 2.RGB Searching light.rar : http://www.yahboom.net/xiazai/Tiny_bit/3.Light%20of%20Tiny%20bit/2.RGB%20Searching%20light.rar
